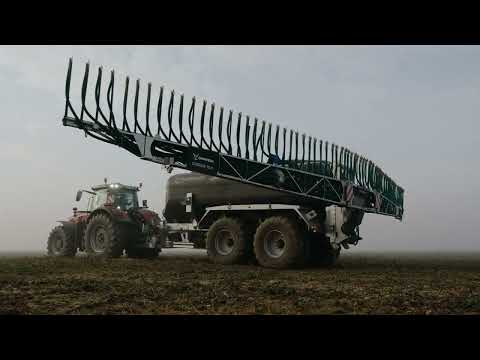

In the variety of equipment much emphasis was placed on being able to equip the Polycis models as variable as possible. From the automatic docking device via a hydraulically height-adjustable drawbar with damping device to the integrated trailing shoe system with a working width of 15 meters for close to the ground application – Farmtech offers a wide range of basic equipment and many other equipment options, thus offering maximum flexibility for every customer requirement. A high-quality processing cavity pump ensures the necessary filling and application pressure in the Polycis.
Fully galvanized chassis frame, drawbar with height adjustment device (low and high mounting), towing eye ball K80, landing gears (with gear box, double speed, three-stages), road lighting system, wheel chocks, hose holder with fixation
Sturdy robust aggregate with two BPW-axles with 10-stud rims, track 2150 mm, wheelbase 1900 mm, load capacity 20000 kg, FL 4118|4112 brake
Dual line air brake installation with ALB (selection according to country)
Barrel body made of lightweight and high-quality polyester reinforced with glass fiber and gelcoat coating, minimum thickness of 8 mm, directly attached to the frame, integrated baffle, quick-coupling with vacuum hoses, mixer with a pneumatic actuation, integrated pressure line with hydraulic switching valve, level indicator with automatic charging system, pipe holder
WANGEN processing cavity pump GL-F 6000, flowrate 6000 l/min, robust rotor over PTO drive with a feather key (reinforced version), axle gasket with oil tank, mechanical seals, double bearing with pin-bearing
|Polycis 1600||Polycis 1800||Polycis 2000|
|Barrel capacity [l]||16000||18000||20000|
|Barrel body dimensions (D x L) [mm]||2050 x 5050||2050 x 6500||2050 x 6500|
|Barrel wall thickness [mm]||> 8||> 8||> 8|
|Suction hose [“]||6||8||8|
|Unloaded weight (depend on config) [kg]||ca. 5300||ca. 6500||ca. 7000|
|Total dimensions (L x W x H) [mm]||7800 x 2550 x 3620||10000 x 2990 x 3780||10000 x 2990 x 3940|
|Power requirements [kW/HP]||> 120 / 163||> 135 / 180||> 149 / 199|
|Barrel body made of lightweight and high-quality polyester reinforced with glass fiber and gelcoat coating||●||●||●|
|Minimum thickness of 8 mm||●||●||●|
|Directly attached to the frame||●||●||●|
|Integrated chassis frame||●||●||●|
|Elektro installation after (EU) 2015/208 with LED technology||●||●||●|
