Fortis 2200

Push-off trailer icon 15 t icon > 133 HP icon Tandem icon Profi

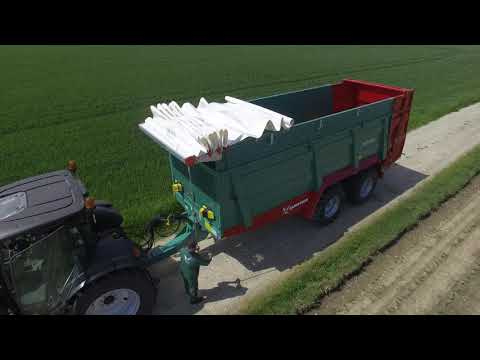

The Fortis push-off trailer is a year-purpose vehicle for transport and spreading tasks. The Fortis meets all expectations and is perfectly suitable for modern farmers, large companies and contractors. Standard rear opening (silage-flap) is particularly suitable for transport of silage, grain, wood chips and other bulk materials. Universality is manifested by a fast and simple change to the standard or universal spreader unit.

Key facts
15 Load capacity
> 133 Tractor power [HP]
22 Gross weight [t]

Sturdy frame made of 8 mm profile, tandem chassis with parabolic springs, high hitch with towing eye D40 mm, hydraulic parking jack, wheel chocks

Axle / Brakes

Two heavy duty ADR-axles with 10-stud rims, track 2100 mm, wheelbase 1810 mm, axle load 14800 kg/axle at 40 km/h, brake cam 406 x 140 mm
Dual line air brake installation with ALB (selection according to country)


U-framework profile 200 mm, steel sidewalls 1500 mm high with collapsible steel extension boards 500 mm, absolute smooth inner walls, steel floor 5 mm thick, plug-in view grill, Rear underride guard, mudguards, hydraulic tailgate

Floor conveyor / Push off wall

Hydraulic drive with two hydraulic motors and two spur gear, two-speed control of the floor conveyor drive, forward and reverse flow, 4 high-strength round steel chains (14 x 50 mm) with sturdy floor strips, floor conveyor feed can be easily operated from the tractor cabin, automatic chain tensioner

Spreading unit-Drive (Optional)

Drive with wide-angle/double joint WALTERSCHEID PTO drive shaft over continuous drive shaft, double joint, distributor drive, safety clutch with cam, free-flowing clutch and double-chain, operating at 1000 rpm


Technical data

Open all plus symbol
Fortis 2200 Fortis 3000
Basic plus symbol
Permitted gross weight with high coupling [kg] 22000 33000
Permitted gross weight with low coupling [kg] 23000 /
Weight without load (depends on config) [kg] 7000 10000
Max. payload with high coupling [kg] 15000 /
Max. payload with low coupling [kg] 16000 23000
Max. drawbar load with high coupling [mm] 2000 /
Max. drawbar load with low coupling [mm] 3000 3000
Trailer total dimensions (L x W x H) [mm] 9840 x 2550 x 3730 11830 x 2550 x 3730
Internal body dimensions (L x W) [mm] 7000 x 2220 9000 x 2220
Ground clearance (standard tyres) [mm] 1470 1470
Power requirements (silage) [kW/PS] > 99 / 133 > 149 / 199
Power requirements (spreader unit) [kW/PS] > 129 / 173 > 193 / 259
Body plus symbol
Sidewall height [mm] 1500 + 500 1500 + 500
Load volume with silage door (water level) [m3] 32,6 ~ 37,0 41,0 ~ 47,0
Usable volume with silage door (max.) [m3] 36,1 ~ 40,5 45,0 ~ 51,5
Load volume with spreader unit (water level) [m3] 27,0 34,5
Usable volume with spreader unit (max.) [m3] 29,0 38,0
Floor thickness [mm] 5 5
U-framework profile 200 mm
Plug-in view grill
Hydraulic tailgate
Chassis plus symbol
Sturdy frame made of 8 mm profile
Floor conveyor plus symbol
Hydraulic drive with two hydraulic motors and two spur gear
Two-speed control of the floor conveyor drive, forward and reverse flow
4 high-strength round steel chains (14 x 50 mm) with sturdy floor strips
Diameter from feed shaft [mm] 60 60
Automatic chain tensioner
Spreading unit - drive plus symbol
Drive with Wide-angle PTO drive shaft
